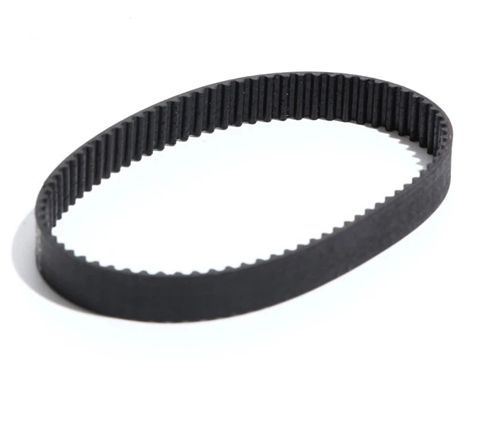

This high quality synchronous transmission belt eliminates the problems of chains and gears.
Extra small pitch type fits well for precision equipment and IT systems.
Thin, lightweight and superior flexibility of this belt allows compact design application.
It enables efficient high speed power transmission.
Low noise operation compared to chain/ gear.
Maintenance-free.
Standard belt can used in the temperature range between -30ºC and + 90ºC, and it is also conductive.

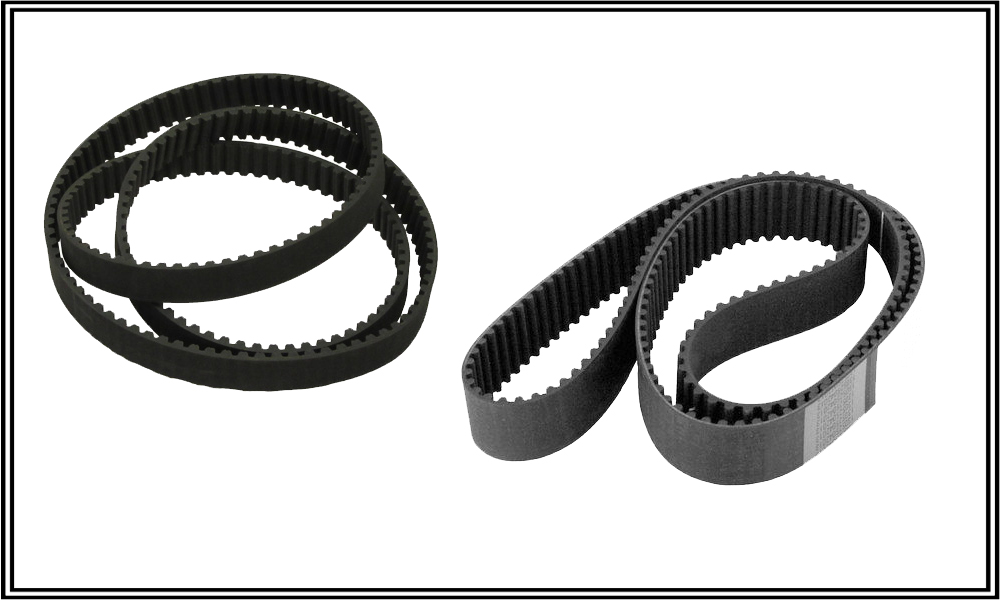

Rubber Timing Belts Are Basically Divided Into Two Categories:

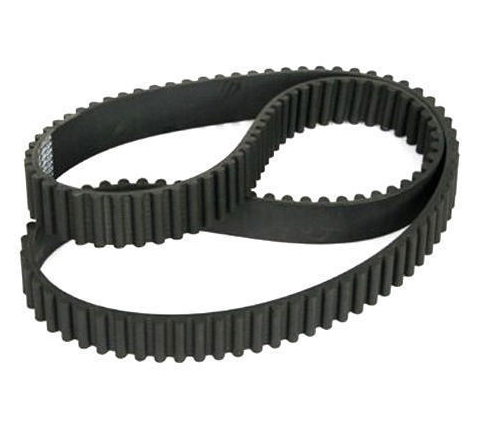

CLASSICAL TIMING BELTS:
These trapezoid tooth timing belt has noise levels lower than chains and gear and does not require lubrication. They have High Power transmission capacity with higher transmission efficiency and static conductive . These belts are maintenance free, and can deal with high dynamic stress. They require little pre-tensioning and are suitable for back tension pulleys. The pitch of these belt are as per british standard and inch measurement based.
| Series | MXL | XL | L | H | XH | XXH |
|---|---|---|---|---|---|---|
| Pitch | 2.032 MM | 5.080 MM | 9.525 MM | 12.70 MM | 22.225 MM | 31.750 MM |

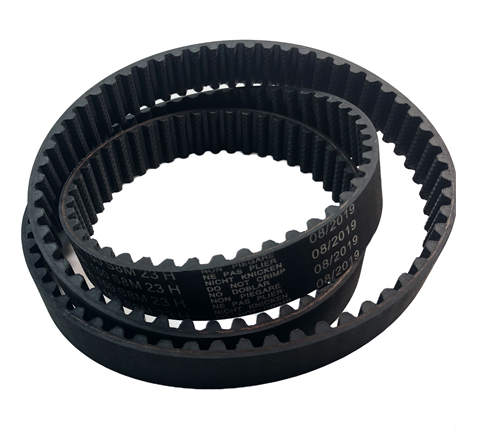

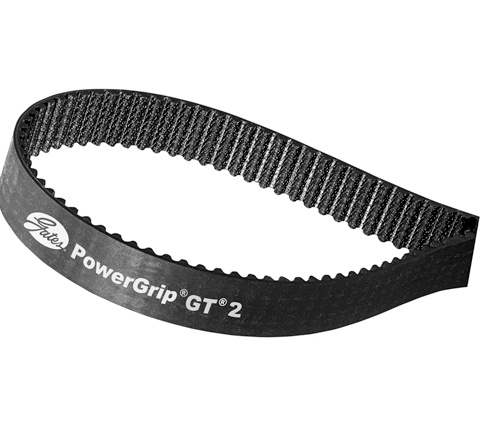

HTD BELTS AND SUPERTORQUE OR STD BELTS:
Special curvilinear tooth design substantially improves stress distribution and allows higher overall loading, precisely formed and accurately spaced polychloroprene teeth ensure smooth engagement with pulley grooves. Fibreglass tensile strength provide necessary strength. These belts are maintenance free and provide high running precision and greater length stability. They require little pre -tensioning and are suitable for back-tension rollers.

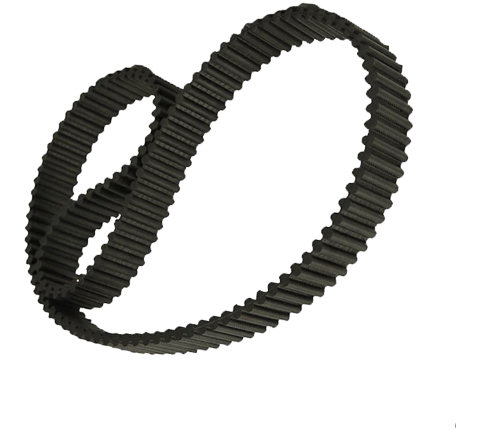

THESE RANGE ARE ALSO AVAILABE WITH DOUBLE SIDE BELTS.
| Range | 2M | 3M | 5M | 8M | 14M | S2M | S3M | S4.5M | S5M | S8M | S14M |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pitch | 2.0 MM | 3.0 MM | 5.0 MM | 8.0 MM | 14.0 MM | 2.0 MM | 3.0 MM | 4.5 MM | 5.0 MM | 8.00 MM | 14.00 MM |
