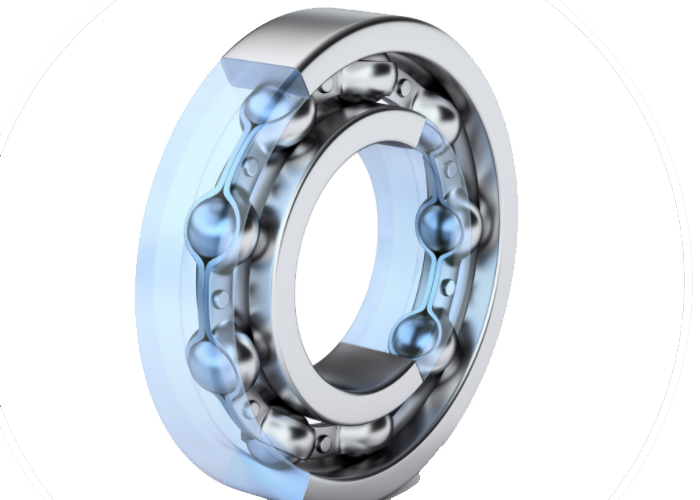

DEEP GROOVE BALL BEARINGS
Deep groove ball bearings are used in a vast array of applications. These bearings have uninterrupted raceway grooves. These grooves have close osculation with the balls, enabling these bearings to accommodate both radial and axial loads in both directions. Since these bearings are non-separable, they are easier to handle and can be mounted in either way; fixed or floating.
DOUBLE-ROW SPHERICAL ROLLER BEARINGS
NIBL self-aligning double-row spherical roller bearing is a combination of radial and axial bearing. It is designed to operate even if shaft and housing are, or become, misaligned under load. The internal design of bearing enables them to withstand very high radial loads and axial loads in both directions.

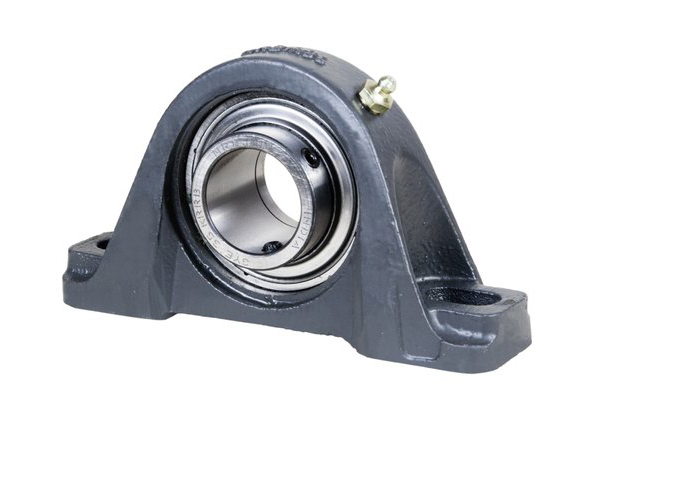

WIR / UNIT / BLOCK BEARINGS
The success of NIBL is added by focus on bearing design and development where the latest technology is used to offer need-based customized solusition NIBL uses CREO-PARAMATRIC, AUTO DESK PRODUCT DESIGN SUIT & AUTO DESK DESIGN SUIT Software for this purposes. NIBL has set up an R&D center at its Shendre plant to achieve the goal of becoming a bearing solution provider. Our aim is to develop a long lasting partnership with the customers.

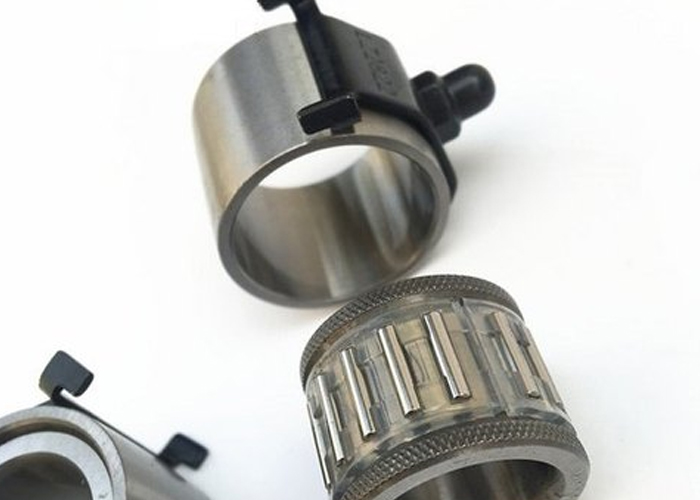

BOTTOM ROLLER BEARINGS
The inner ring is press fit on the journal. A special tubular dummy should be placed against the inner ring face and the force for mounting should be applied uniformly (use of a - pneumatic cylinder is advisable) until the bearing ring abuts the face of the Bottom Roller.
CAM FOLLOWERS BEARINGS
Cam followers are designed to run directly on surfaces such as cams, ramps, and slide ways. They are used as track rollers, cam followers, and in a wide range of linear motion systems.

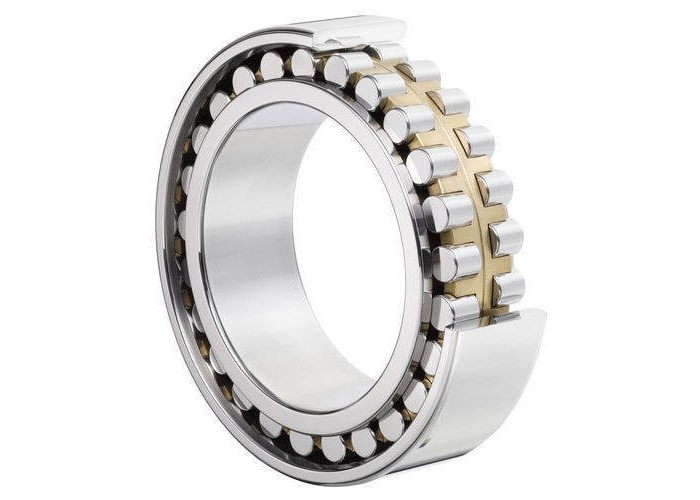

CYLINDRICAL ROLLER BEARINGS
Single row cylindrical roller bearings are units with solid inner ring, outer ring, cylindrical roller and/or cage assemblies. Inner ring and outer rings are designed with one side rigid rib, both sides rigid ribs or no rigid rigs.

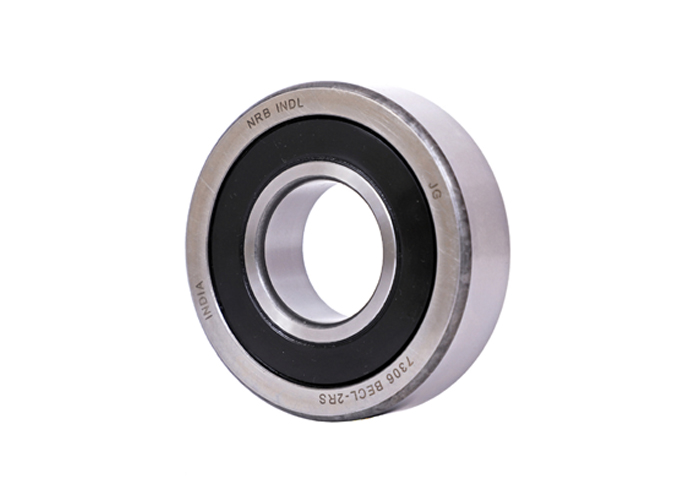

ANGULAR CONTACT BEARINGS
Single Row Angular Contact Ball Bearings are designed to accommodate axial loads in one direction only. A single row angular Contact ball bearing is adjusted against a second bearing following different arrangements . i.e back to back, Face to Face or Tandem.

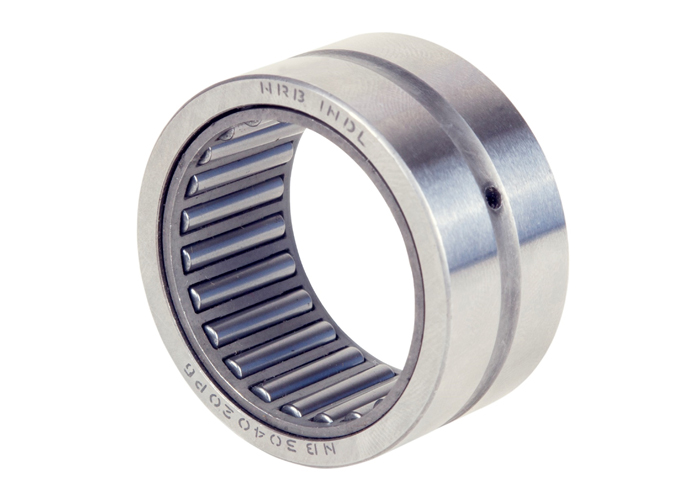

NEEDLE ROLLER BEARINGS
NIBL’s caged needle bearings, which have a high load carrying capacity, consist of outer ring made from through- hardened bearing steel. The cage guides the needles and retains them in the outer ring. The bearings may be used without an inner ring if the shaft journal serving as a raceway is of sufficient hardness and has the correct surface finish.

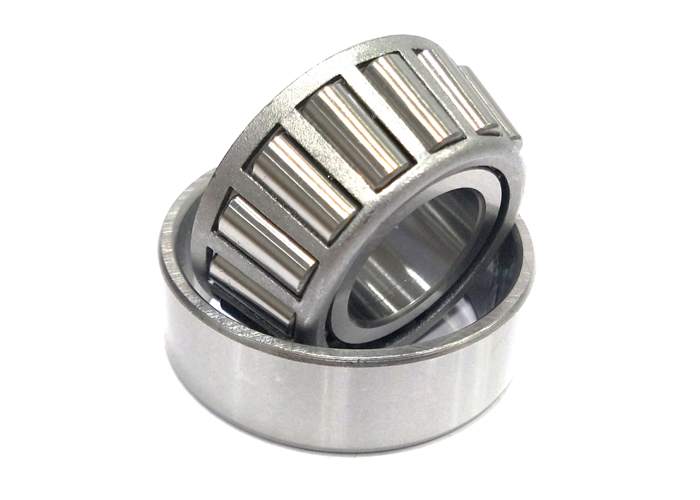

TAPPER ROLLER BEARINGS
Tapered roller bearings are separable radial bearings. They consist of the inner ring with roller set and cage assembly, (cone) and a loose outer ring (cup). Tapered roller bearings are suitable for both radial and thrust forces but also accept combined loads and tilting moments. Tapered roller bearings transfer the loads acting on the bearing at a certain angle, the so called “contact angle α” towards the shafts centre line.

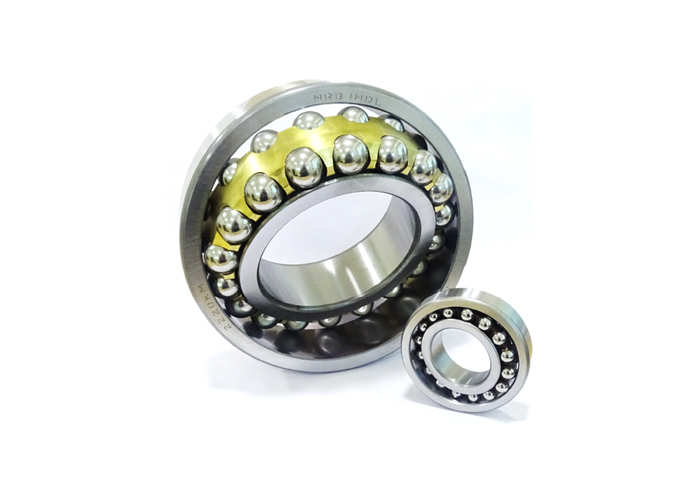

SELF ALIGNED BALL BEARINGS
Self aligned ball bearings are double row, self retaining units comprising outer rings with concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. Bearings are available in open and sealed designed.
