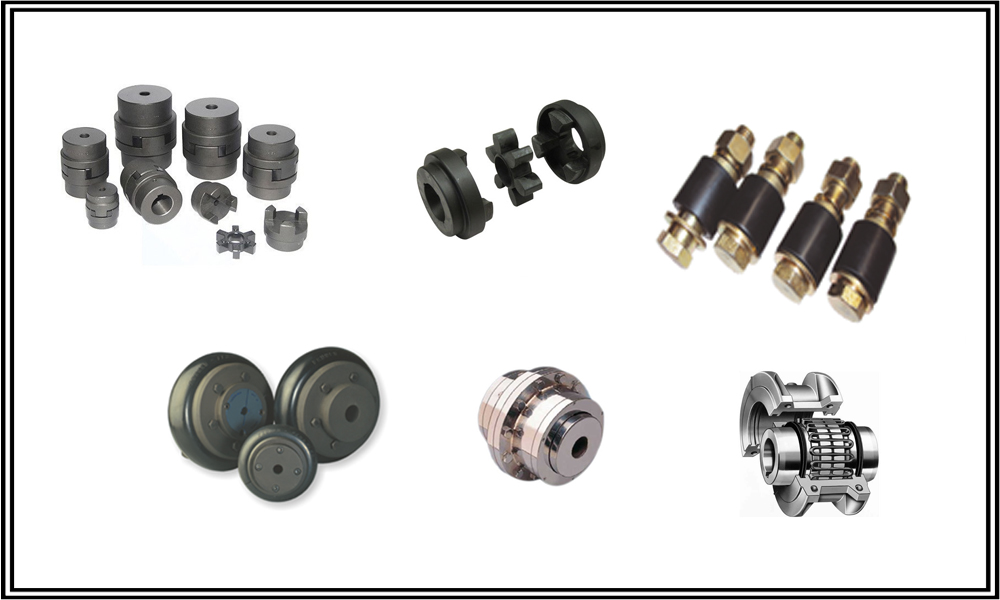

We Deal In All Brands Of Couplings , Like Fenner / Lovejoy / Unique / Rexnord And Other All As Per Requirements.
Coupling fall into two main categories: Material Flexing and Mechanical Flexing. The material flexible types obtain their flexibility from stretching or compressing a resilient material, such as rubber, or from the flexing of thin metallic discs or grid. Material flexing couplings do not require lubrication, with the exception of grid couplings.The mechanical flexing couplings accept misalignment from rocking, rolling or sliding of metal surfaces. All metal mechanical flexing couplings require lubrication.

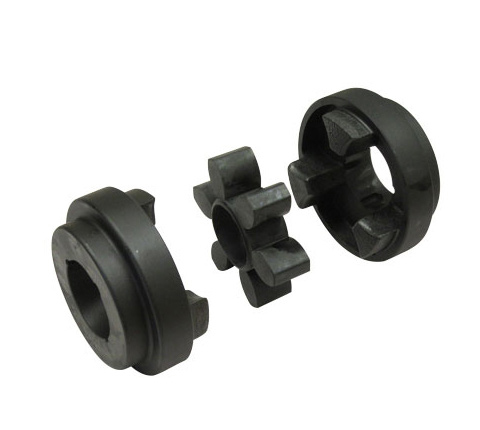

ESSEX Jaw Coupling
General purpose, low cost, and flexible jaw coupling
Flexible Rubber inserts caters to incidental Angular, Parallel, and Axial misalignments
Comes in Standard (8 sizes), External Spider (6 sizes), and Cushion type (5 sizes)
All versions are available in spacer type, with spacer size depending on the distance between the shaft ends (DBSE)
- Torque: 20 – 2139 Nm
- Bore Range: 15 – 90mm (via Bore)

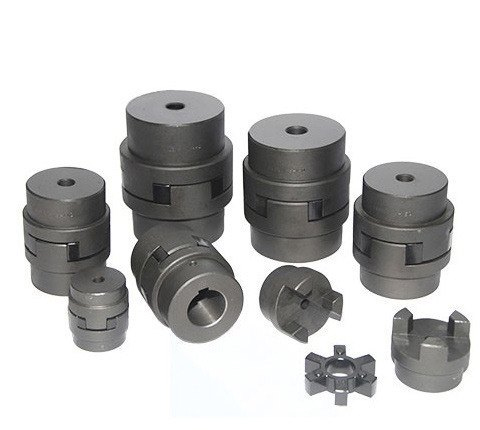

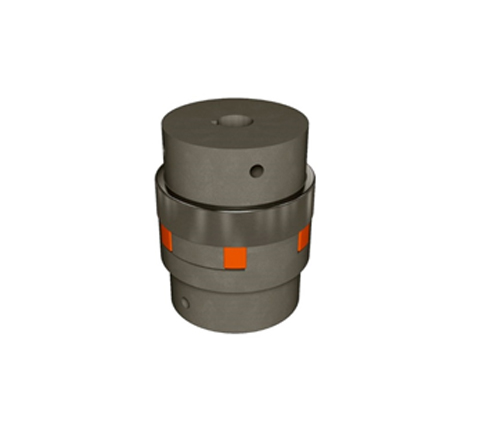

HRC Coupling
A product developed by Fenner (Hainsworth Research Centre, UK)
Higher power transmission & misalignment capacity
Available in Taper Lock / Through Bore versions
Optimized design to balance power capacities
Appropriate shaft diameters that utilize Taper Lock Bush fixing.
Nitrile Rubber elastomeric inserts to withstand temperatures from – 40°C to +100°C
Comes in 8 varying sizes (HRC-70 to HRC-280)
- Torque: 5 – 3150 Nm
- Bore Range: 9 – 90mm (Taper Lock) & 10 – 115mm (Through Bore)

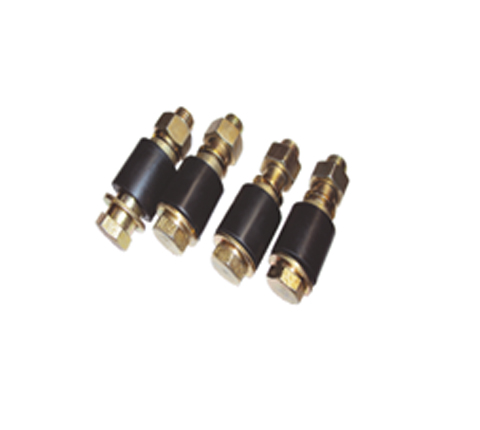

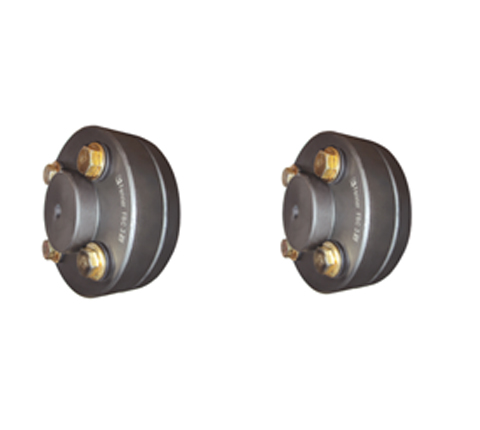

Pin Bush Coupling
Simple and Compact
High Torque and High Speed
Flanges in pilot or finished bore
Lubrication is not required
Comes in 26 sizes (FBC-1 TO FBC-17)
Power rating ranges from 0.81 kW to 2069kW at 100 rpm.
- Torque Range: 77 – 1,97,600 Nm
- Torque: 5 – 3150 Nm
- Bore Range: 7 – 350mm

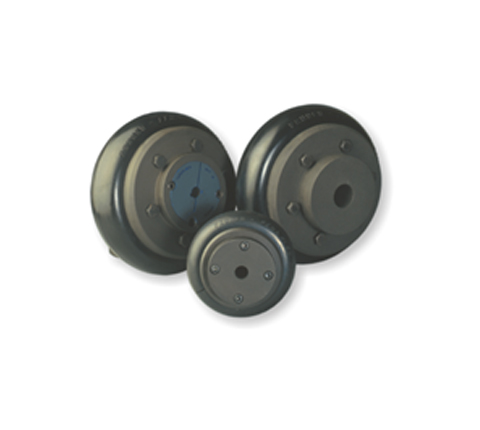

Fenaflex Tyre Coupling
Highly Elastic and Back Lash Free
Absorbs shocks and dampens vibrations
High Misalignment Capacity
Available with Taper Lock Bushes
Available with Spacers 100mm,140mm,180mm DBSE
Choice of tyres – Standard, Neoprene, or Fire Resistant Anti-Static (FRAS)
Inherent Overload Protection
Lubrication is not required
Comes in 17 sizes (F40 – F250)
Power rating ranges from 0.22 kW to 132kW at 100 rpm
Bore: 9 – 127mm (Taper Lock) & 11 –190mm (Through Bore)

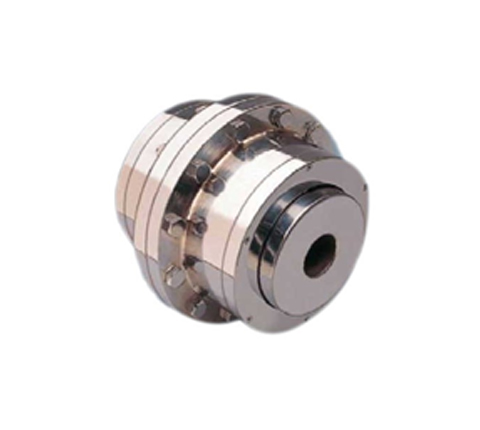

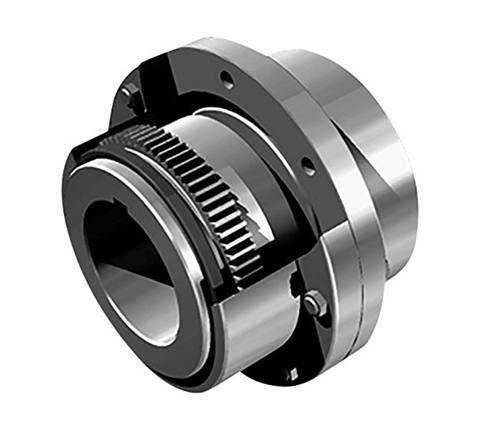

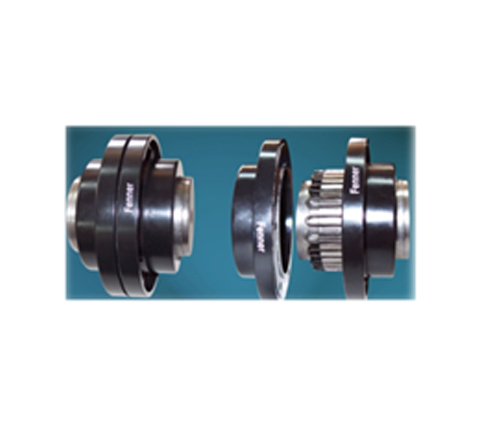

Gear Coupling
High Mechanical Flexibility – Crowned Tooth profile
High Mechanical Flexibility – Curved Tooth profile
High compensation of Angular, Parallel, and Axial misalignment
High power carrying capacity
Suits variety of applications
Conforming to IS & IPSS Standards
Seal carrier for easy maintenance
Carbon Steel forged / cast hubs with hardened teeth
Comes in 19 sizes (FGC-1 – FGC-19)
Comes with Torsion shaft.
- Torque: 1100 – 14,70,000 NM
- Bore Range: 14 – 710 mm

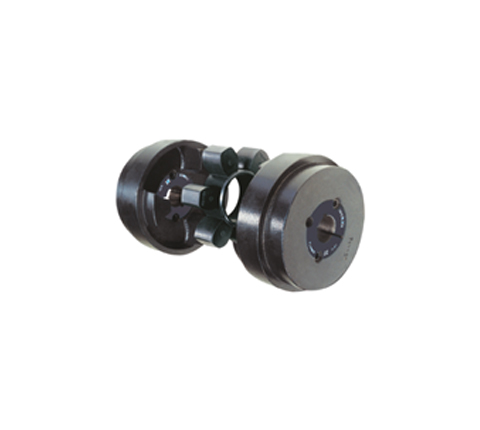

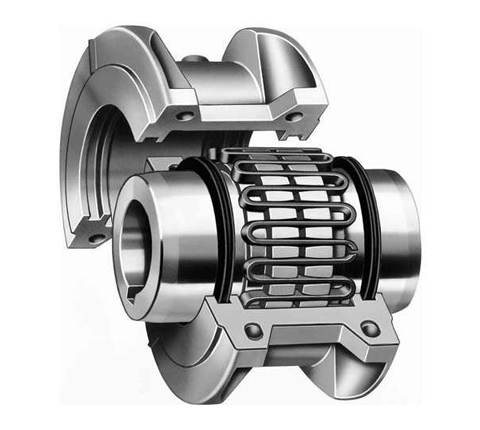

Resilient Coupling
High-power rating and greater flexibility
Ranges from 0.45kW to 1308kW at 100 RPM
Vertical & Horizontal Split cover for easy installation

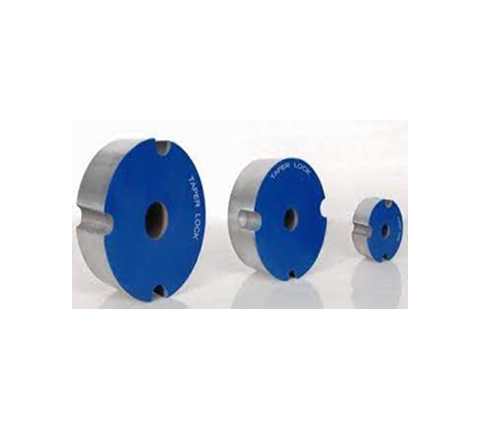

Taper-Lock Bushes
Using Taper-Lock Bushes, it is possible for unskilled labour to achieve 'shrink fit' of Pulleys, Couplings, etc. on to shafts only using a hexagon wrench. The arrangement of half-threaded holes and longitudinally split tapered bushes ensure maximum grip and fast, easy fitting. Tightening of the screws into the threaded holes in the hub forces the bush into the taper bored components, thereby effectively contracting the bore of the ® Taper-Lock Bush until the equivalent of a shrink fit is obtained. Taper Lock 'Bushes are suitable for metric shafts and can also be supplied with Imperial Bores and Keyways.
